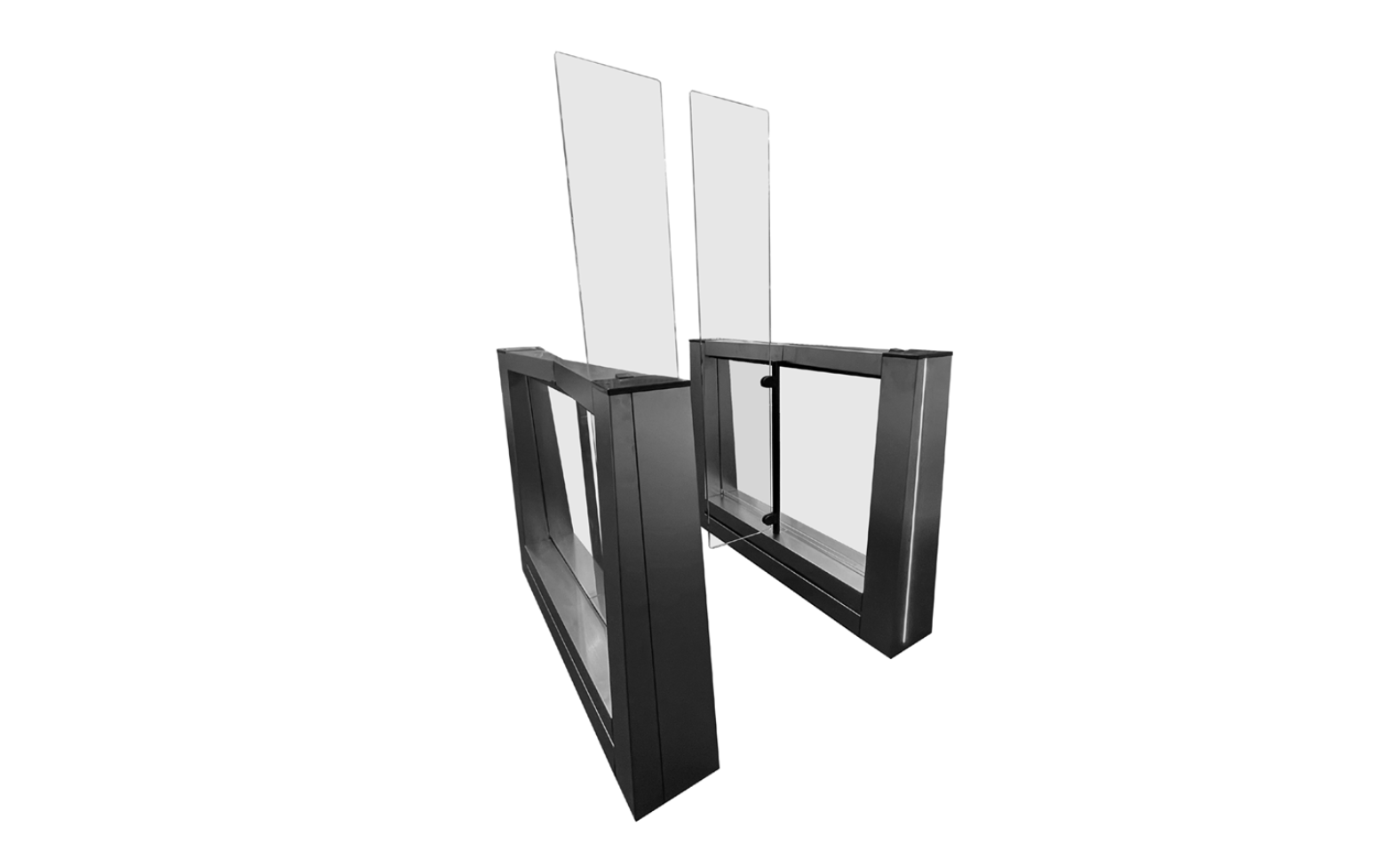

Glassgate 455 LX
Building on the trusted performance of the Glassgate 400, the Fastlane Glassgate 455 LX combines higher-security entrance control with a longer enclosure designed to accommodate wider lanes.
The Fastlane Glassgate 455 LX model has dual glass swing barriers, available for lane widths of 660mm, 914mm, 1,000mm, 1,100mm and 1,200 mm. Four barrier-height options are available, from pedestal height at 990mm up to 1,700mm.
Created using advanced 3D CAD lofting techniques, the GG455 LX enclosure features a unique, internationally Registered Design, that blends the wider footprint with a narrower decorative top. It is supplied in a brushed stainless-steel finish, with ambient lighting for the enclosure glass panel and a refined end-of-lane display for a sleek, modern aesthetic. The decorative top includes concealed proximity-reader mounting, consistent with other Fastlane models.
Fastlane Connect Ethernet communications provide control, configuration and diagnostics through a standard web browser.
- Dimensions(L,W,H): 1560 x 226 x 992mm
- Lane width options: Standard 660mm, DDA/ADA 914mm, wider lanes of 1,000mm, 1,100mm and 1,200mm
- Barrier height options: 990mm, 1,200mm, 1,500mm and 1,700mm
- IP connectivity: Yes
- Locking brake option: Yes

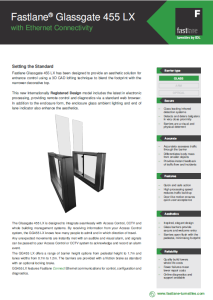

A&E specifications available on request
BIM models and details of the Fastlane Glassgate 455 LX – as well as the rest of the Fastlane range – can be accessed via BIMObject, including the standardisation of digital assets and integration with BIM software, which makes comparison of products much simpler and therefore speeds up the specification process for architects and specifiers.
